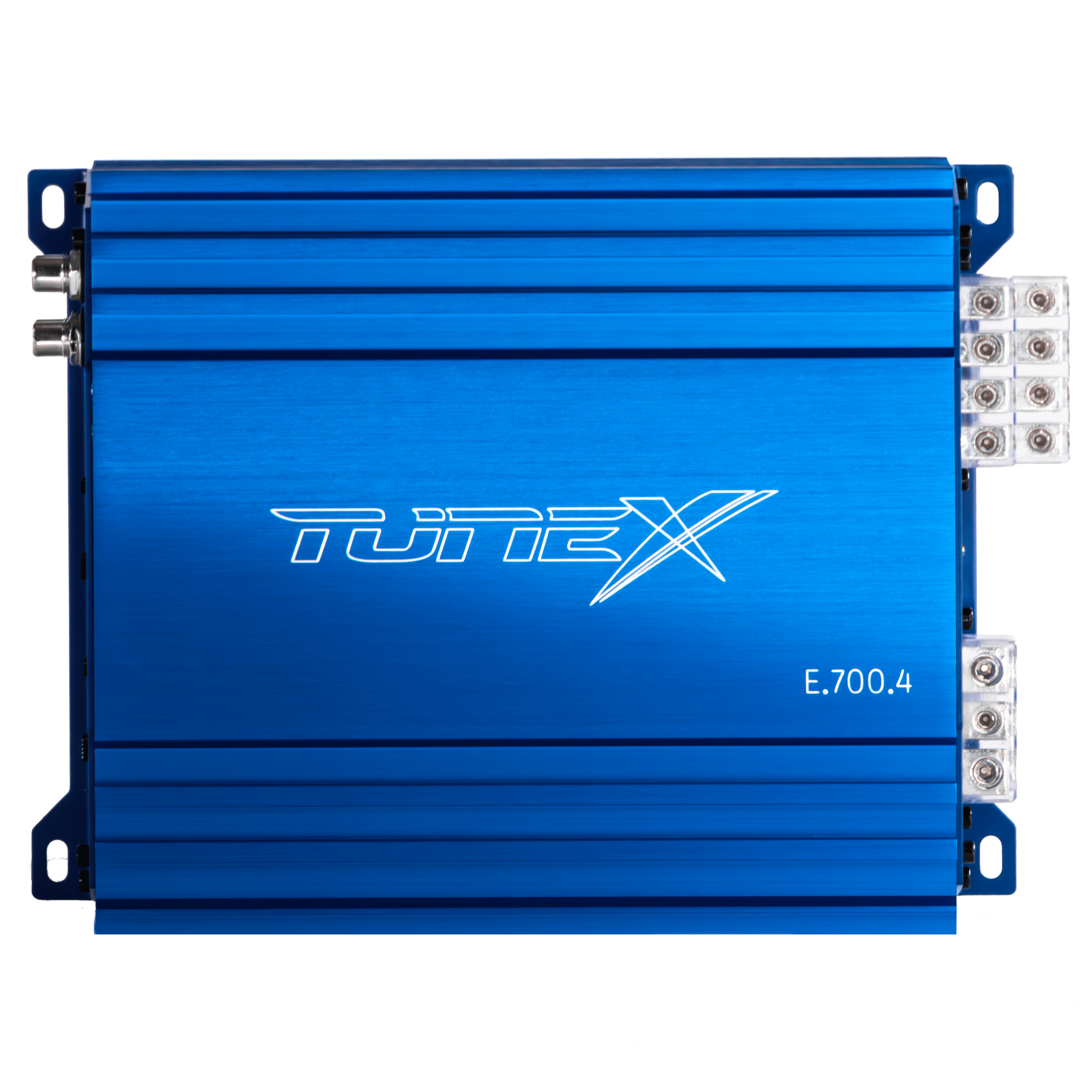

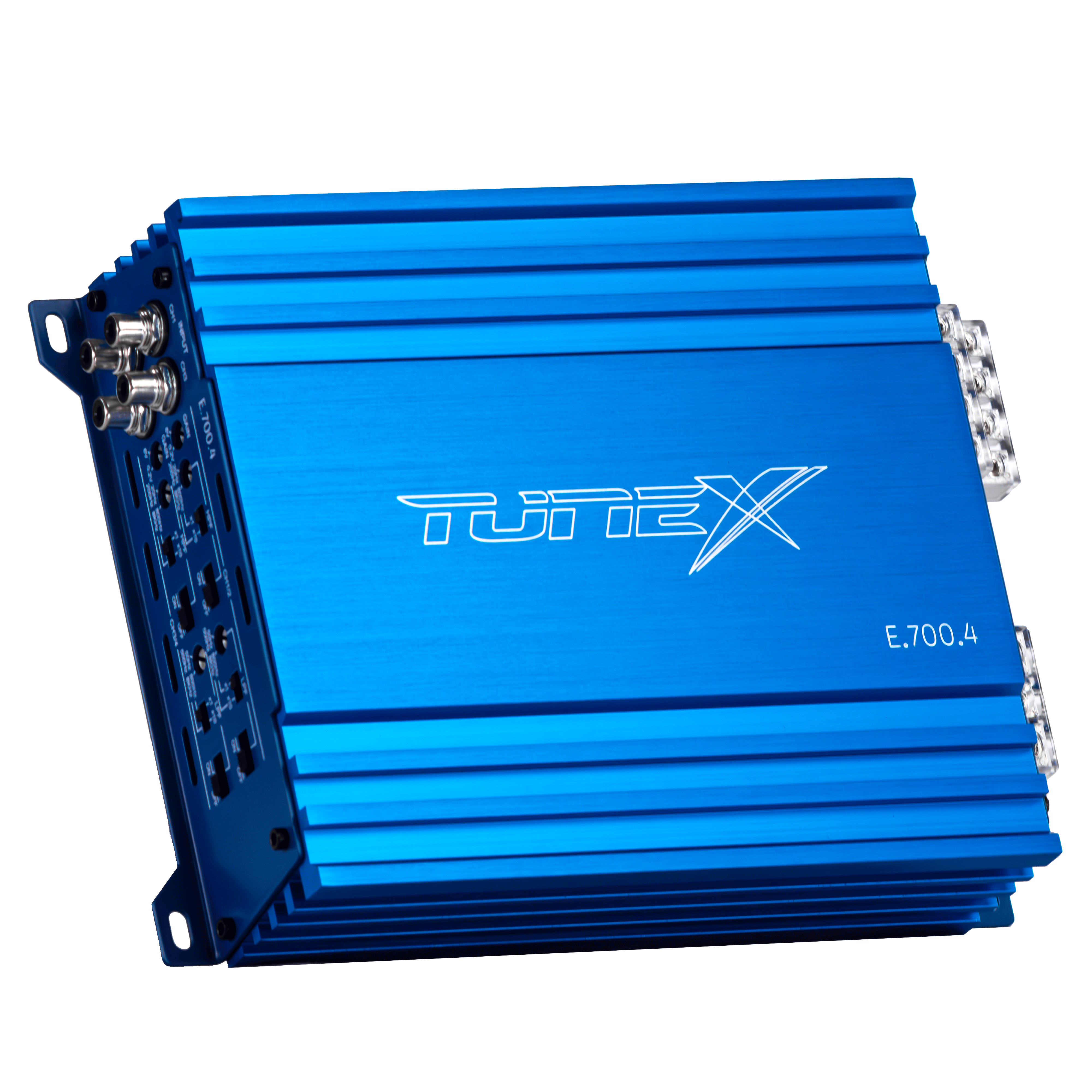

E.700.4 E Series High Quality Compact Amplifier 4 Channel
MULTI-CHANNEL AMPLIFIER
- 2ohm stereo stable full range digital circuit
- Variable High pass filter
- Variable Low pass filter
- Multiply x1, x10
- Band-pass capable
- Surface Mount Technology
- Double sided printed circuit board
- Multi-way protection circuitry
- ( DC, Speaker Short, Thermal and Voltage )
| No of Channels | 4 Channels |
| Congiguration |
Full Range digital
|
| 4ohm RMS power | 115W x 4 |
| 2ohm RMS power | 179W x 4 |
| 4ohm Bridged power | 366W x 2 |
| Frequency Response | 10Hz – 40KHz |
| Signal to Noise Ratio | 77dB |
| Efficiency @ 4ohm | Over 88% |
| Damping Factor | 100 < |
| Input Sensitivity | 6V – 0.2V |
| Low Pass Filter | 50Hz – 800Hz |
| Multiply ( x1, x10 ) | 500Hz – 8KHz |
| High Pass Filter | 20Hz – 800Hz |
| Multiply ( x1, x10 ) | 200Hz – 8KHz |
| THD @ 4ohm | < 0.1% |
| Fuse Rating | 60A |
| Dimensions ( L ) |
200 mm x 178W x 56H mm
|
